Trailer_relay_panel

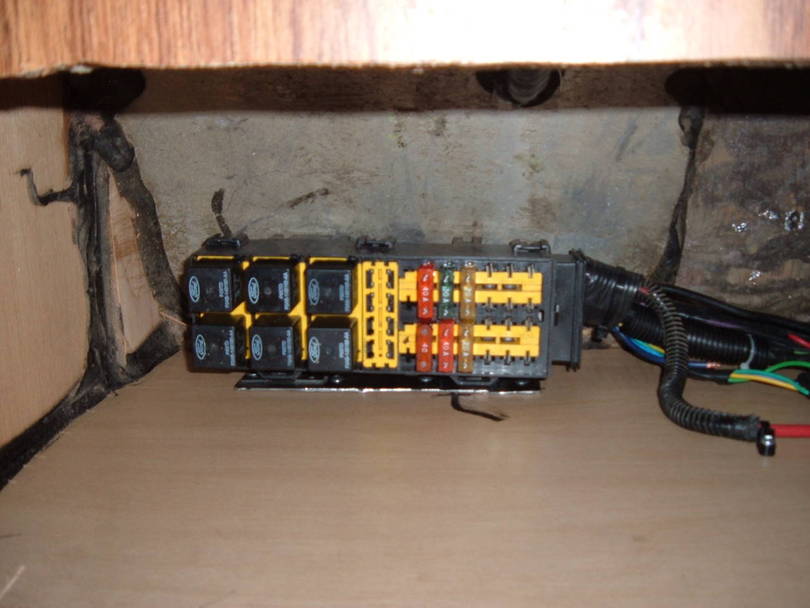

The trailer relay panel is in the space under the rear Davo and accessable though a hatch I built into the wooden base. I know the relays are Ford, but the panel was easy to get, and easy to rewire. The relays are same as GM anyway. This panel was originally controlled by the Ford ECU for fuel Pump, Air conditioning, Cooling fan, etc. The signal lines that controlled the relays were too light because of the ECU, therefore heavier ones were used. Relays for Battery charge, Left and Right (Sig.Brk. Light), Clearance, Reverse, spare. Notice that each has a fuse to protect wiring and hopefully avoid fires.
