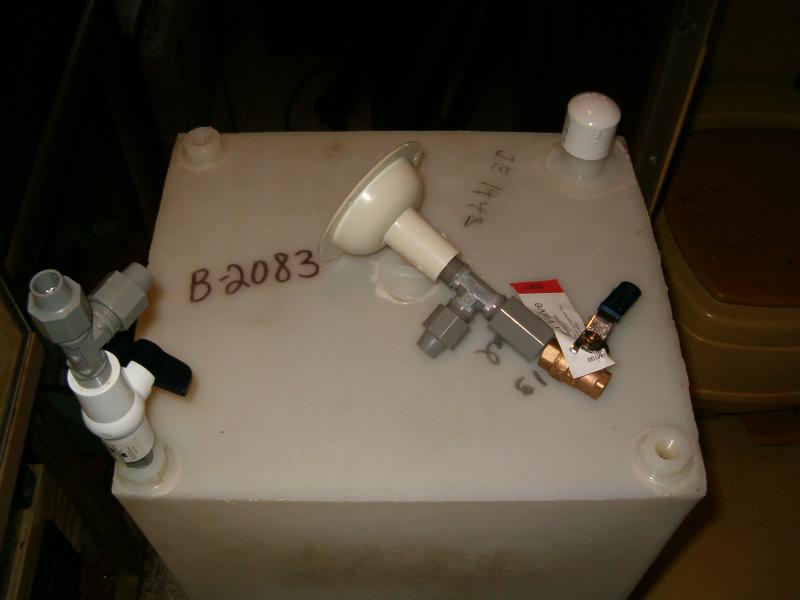

This shows some of the new connections. The mess in the middle is the new city water hookup into a tee going to water lines and the other through a valve that will go to the tank for filling. Bottom left is the drain valve which will have the overflow teed into in after the drain valve. The overflow connection is at the top left and will come down to the tee. The big old water fill inlet will be capped off. This tank had the fittings facing forward but I am going to reverse it and all the fittings will be in the rear. Hopefully I can clean up some of the maze of piping.
