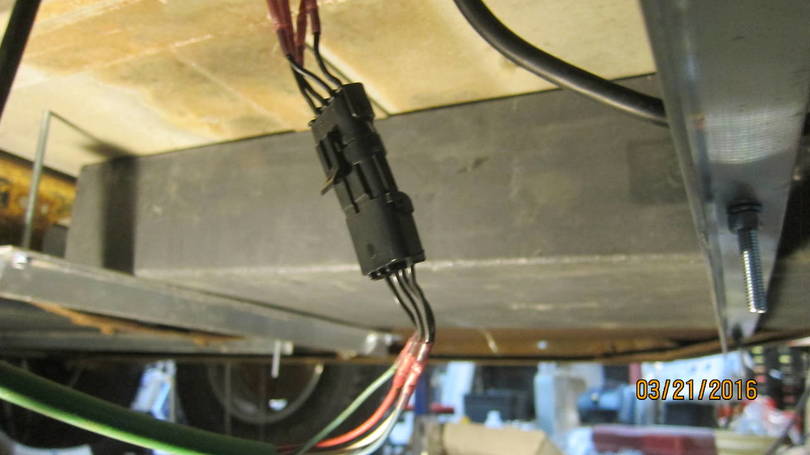

On Royale finished coaches, There are 4 wires that run from your interior remote start switch. To the generator. They\'re red, white, blue, and green. These wires connect to 4 white wires that come out of the generator.  These white wires are labeled with black lettering on these wires. That lettering is very small, and hard to read. There are 4 scotchlok wire connectors that connect these wires in what I consider to be a hazardous area under the generator. These wires then lay in the main coach frame C channel on the left side. As they go to the interior start switch. The first photo shows the black channel of the frame with the protective plastic tubing that hole the wires from the two holding tanks. And one for the 4 generator wires. ( the large black wire is a battery cable ) Photo 2 is a 4 pin connector with waterproof shrink tube wire connectors installed. 3, and 5 show all connections completed. 4 show the original scotchlok connectors. The green tubing is fairly simple to install. And if you\'re replacing your  rubber gas hoses. That makes both task simpler to do.
