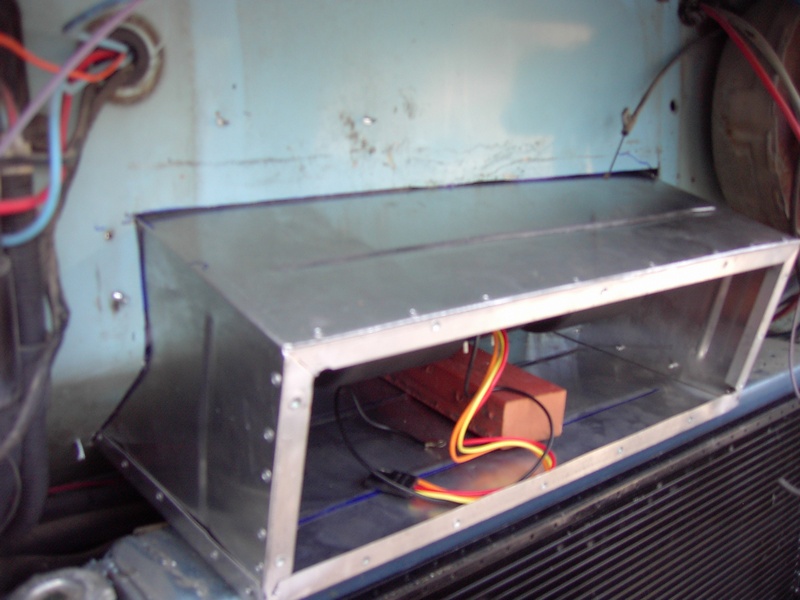

New plenum
After the old A/C has been removed there is a lot of space to work. The hole was enlarged with a SAWZALL and jigsaw. Next I built a plenum as large as space permitted since the Danhard 460 needed to fit in the plenum plus the plenum needed to allow for air to circulate back into the blowers. I have about 2" inches on either side plus 3" below.
 |
|
 |
