75) INSTALL ROADMAP

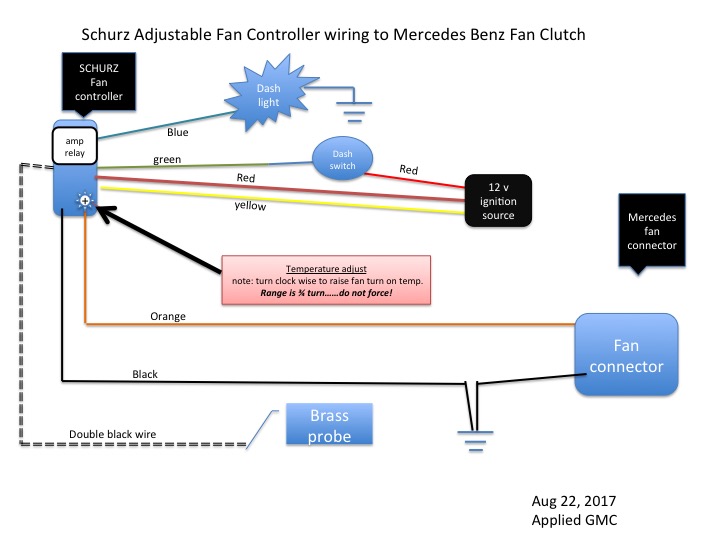

THIS IS THE WIRING SKETCH INCLUDED WITH APPLIED KIT. Â I HOPE THE "CARTOON" IS SUFFICIENT. Â INSTALL ITEMS:
- CONTROL MODULE
- BRASS TEMPERATURE PROBE
- DASH LIGHT
- DASH SWITCH
- FAN CONNECTOR
- CONNECTION TO 12v IGNITION SOURCE
 LAST IMAGE POSTED IS THE ENGINE VIEW OF THE COMPLETED INSTALL.
 |
|
