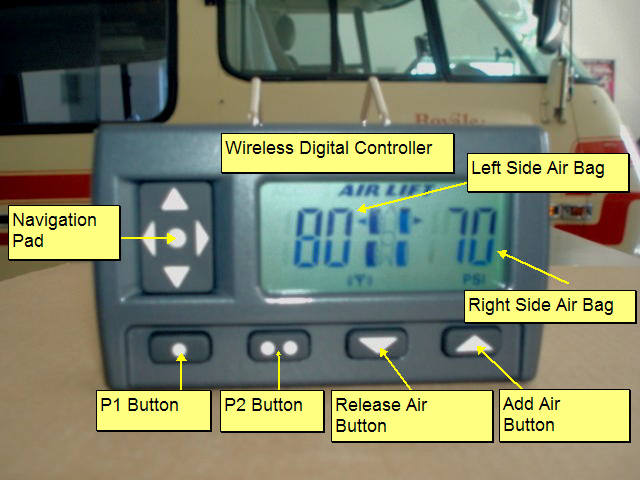

The wireless digital control (WDC) has nine push buttons used to activate the remote and control all system features. There are five switches that make up the navigation pad and four switches on the lower edge of the WDC are referred to as P1, P2, Up and Down. This remote communicates with the wireless manifold that regulates the pressure in the air bags (within plus or minus 3 psi).


The five buttons of the navigation pad are used to select either side's bag(s) or both at the same time to add or release air. The P1 and P2 switches are used to preset the psi setting in each side's bag(s) as needed. Example: set P1 for travel with full load or P2 for lowering coach to dump black water tank.


The Up and Down arrows are for adding and releasing air.
