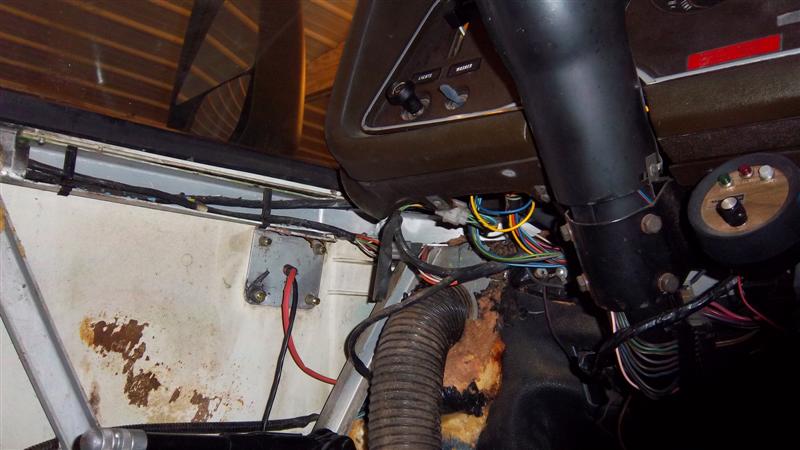

location of blue spare wire under dash
Finding the spare wire (blue) under the dash has been reported to be difficult. It is included in the side body harness which runs from the 6 way multiple connector at the LH rear of the coach to the 10 way multiple connector at the front of the coach under the instrument panel upper LH side of dash panel. In this picture the 10 way connector is mostly hidden by the dash. The side body harness is one of the wire bundles in the body frame channel.
|
 |
