location of blue spare wire under dash

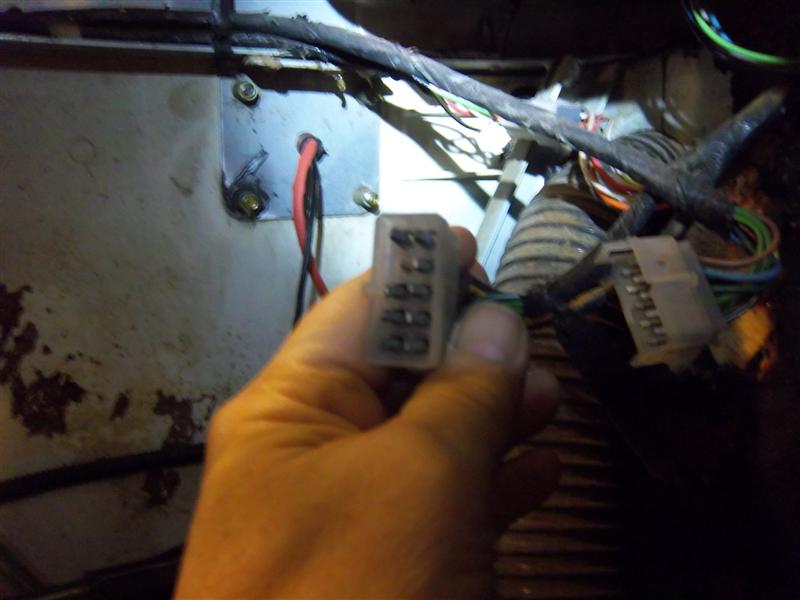

A close up of the 10 way connector pulled out from under the dash. This is the inst panel side of the connector. There is no pin in the connector body, as expected. Note there is NO blue wire in the inst panel cable (LH side of connector in this photo.)
Finding the spare wire (blue) under the dash has been reported to be difficult. It is included in the side body harness which runs from the 6 way multiple connector at the LH rear of the coach to the 10 way multiple connector at the front of the coach under the instrument panel upper LH side of dash panel.
Finding the spare wire (blue) under the dash has been reported to be difficult. It is included in the side body harness which runs from the 6 way multiple connector at the LH rear of the coach to the 10 way multiple connector at the front of the coach under the instrument panel upper LH side of dash panel.
 |
|
