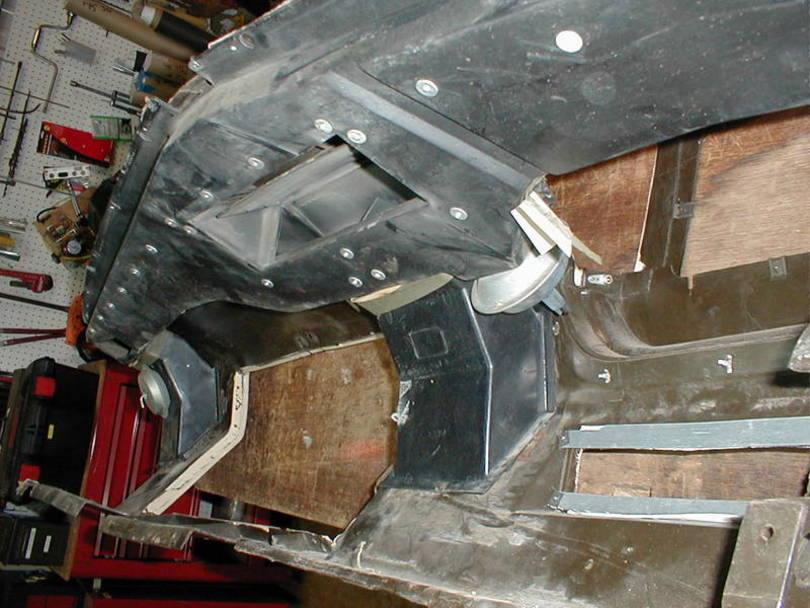

View of the plastic dash from underneath.

Here's the removed dash view from low left front. The center hole is where mixed air enters after passing through the evaporator and the heater core. The door is vacuum moved to defrost through the front lateral half of the plenum or to the dash and floor through the rear half.
