View Larger Image

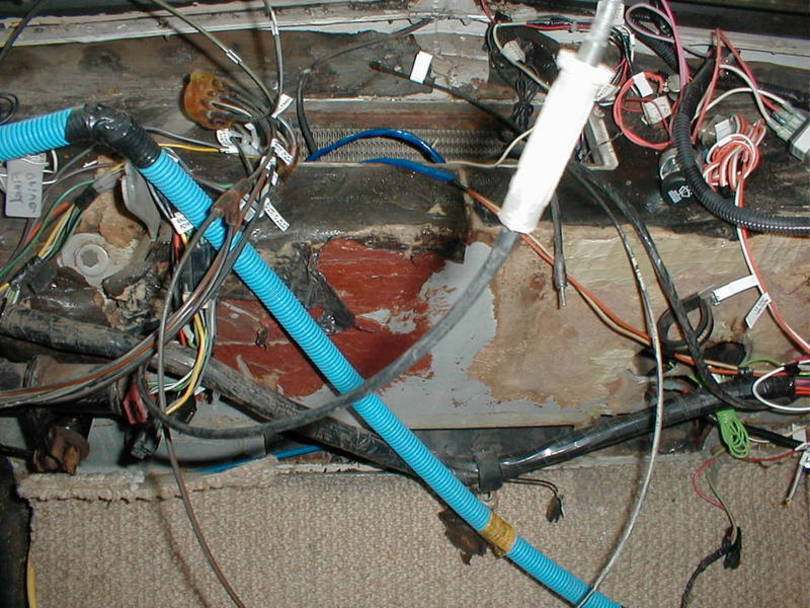

Mixed air outlet to defroster and dash outlets.
That center hole reveals the heater core; it's from there that the air rises into the dash plenum. The door which selects the forward (defroster) plenum or the rear (dash & floor) section does not seat well in either position.
 |
|
 |
Photo Details
-
- Date:
- Sun December 9, 2007
- Views:
- 2,639
- Dimensions:
- 800 x 600
